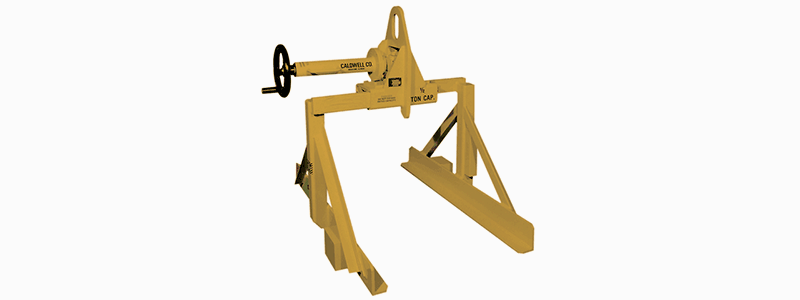

Small Bundle Sheet Lifter
Product Features
- Standard light duty unit for handling smaller size sheets and bundles.
- Size and versatility allows for handling of crates, bins and other smaller size containers.
- Side oriented extended length hand wheel adjustment standard.
- Self locking worm gear leg drive system.
- Complies with ASME standards.
Product Specifications
| Model 62 Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Capacity (tons) | Min Bundle Width (in.) | Max Bundle Width (in.) | Min Aisle Width (in.) | A (in.) | B (in.) | C (in.) | HR (in.) | Weight (lbs) |
| 62-1 1/2-36 | 1-1/2 | 12 | 36 | 8 | 1-1/2 | 3 | 8 | 42 | 512 |
| 62-1 1/2-48 | 1-1/2 | 16 | 48 | 8 | 1-1/2 | 3 | 8 | 42 | 525 |
| 62-3-48 | 3 | 16 | 48 | 8 | 1-1/2 | 5 | 8 | 44 | 670 |
| 62-3-60 | 3 | 20 | 60 | 8 | 1-1/2 | 5 | 8 | 44 | 736 |
| 62-5-48 | 5 | 16 | 48 | 8 | 2 | 7 | 8 | 52 | 750 |
| 62-5-60 | 5 | 20 | 60 | 8 | 2 | 7 | 8 | 52 | 763 |
