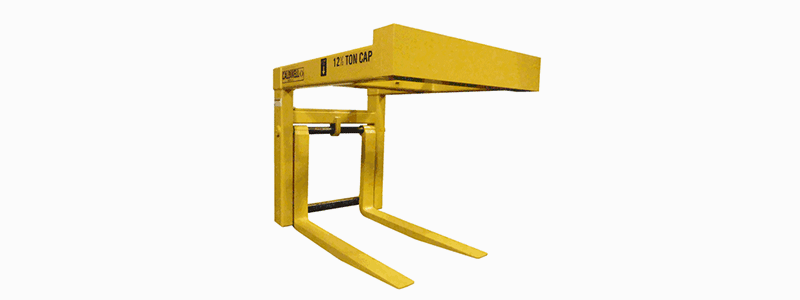

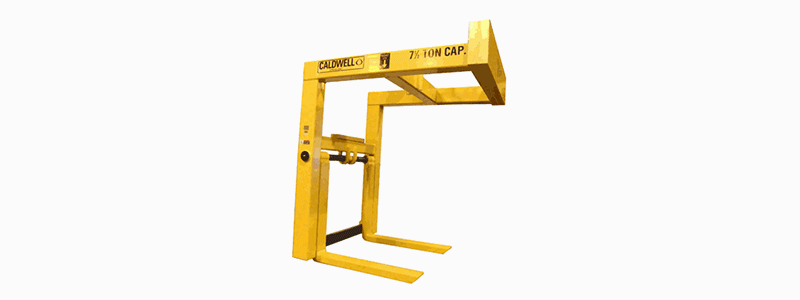

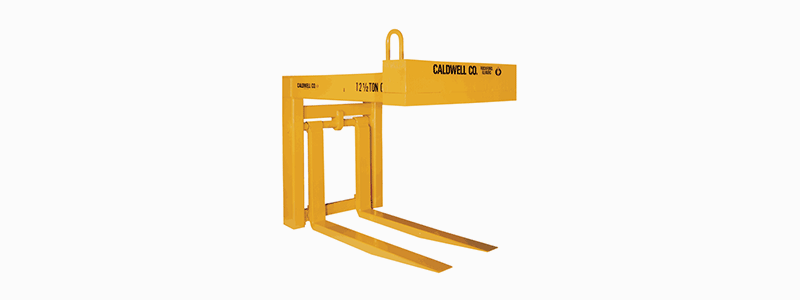

Product Features

  • Forged forks gives ease of adjustment.
  • Smaller fork sizes gained using forged forks.
  • Double frame design for heavy capacities.
  • Complies with ASME standards.

Product Specifications

Model 96 Specifications
Model Number Capacity (tons) L (in.) M (in.) N (in.) W Min (in.) W Max (in.) E (in.) A (in.) B (in.) C (in.) J (in.)* HR (in.) Weight (lbs)
96-7 1/2-48 7-1/2 48 6 2-1/2 20 48 24 2 5 9 48 64-1/2 2400
96-7 1/2-60 7-1/2 60 6 3 20 48 30 2 5 9 60 77-1/2 3300
96-7 1/2-72 7 1/2 72 6 3 20 48 36 2 5 9 60 80 3750
96-10-48 10 48 6 3 20 48 24 2 5 9 48 68 2900
96-10-60 10 60 6 3 20 48 30 2 5 9 60 79-1/2 4300
96-10-72 10 72 7 3 20 48 36 2 5 9 60 79-1/2 4900
96-12 1/2-48 12-1/2 48 6 3 20 48 24 2 6 12 48 82 3900
96-12 1/2-60 12-1/2 60 6 3 20 42 30 2 6 12 60 82 4700
96-12 1/2-72 12-1/2 72 7 3-1/2 20 38 36 2 6 12 60 82 5500
* We recommend an additional 3"-4" clearance above the load for ease of loading and unloading the lifter.
